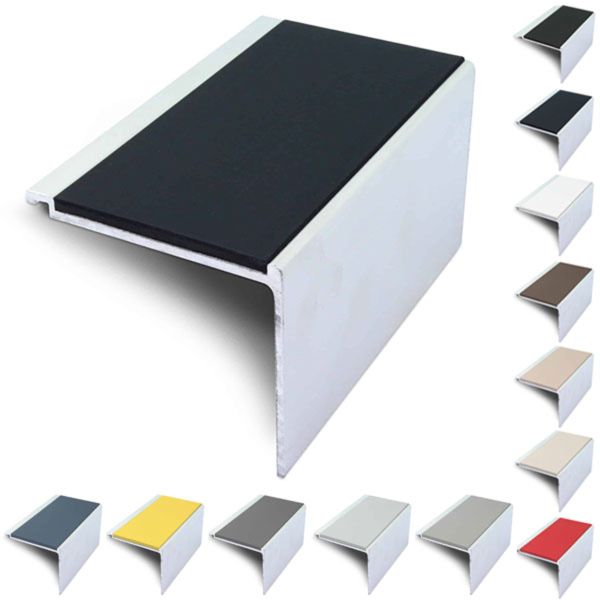

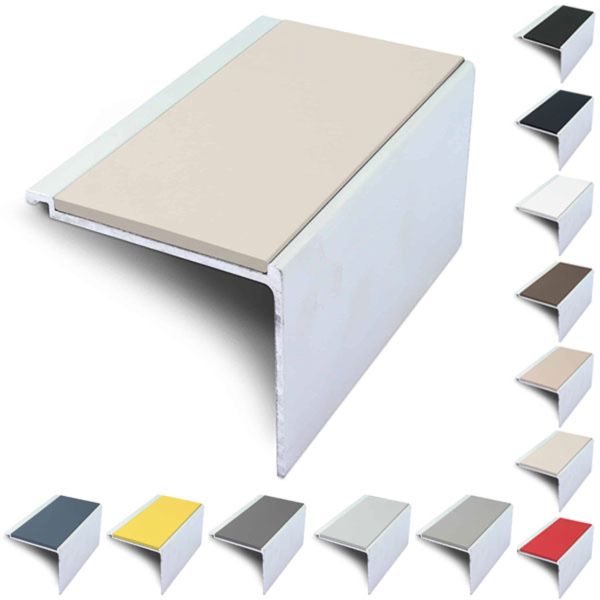

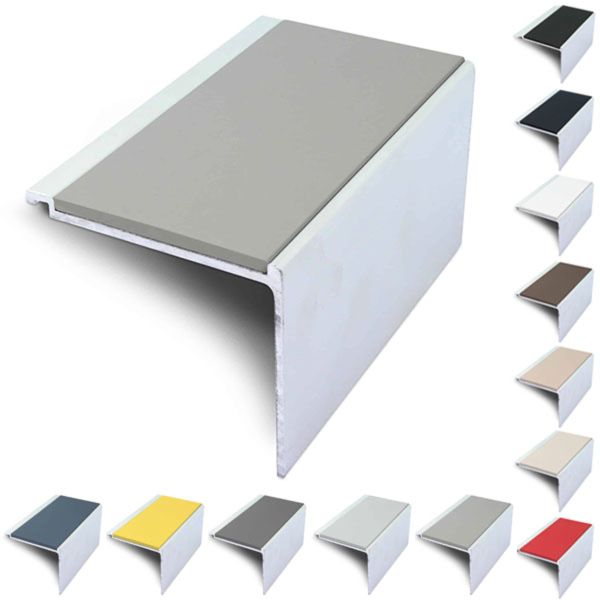

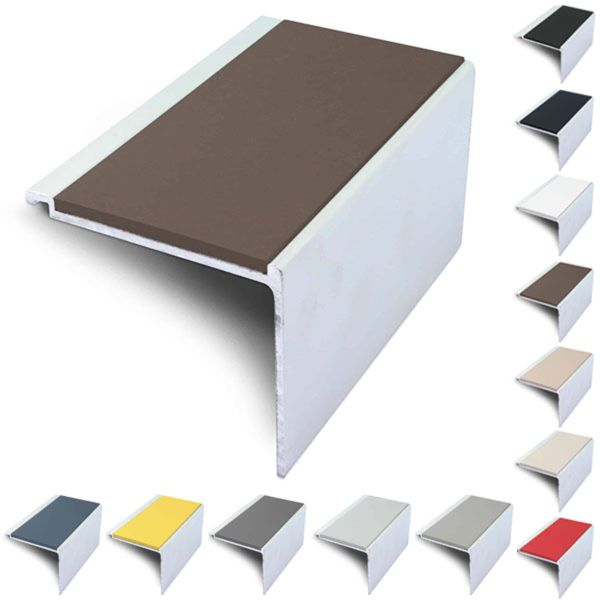

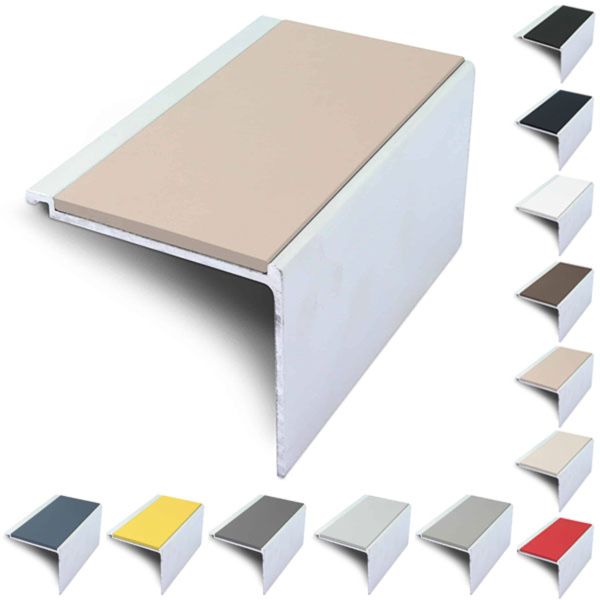

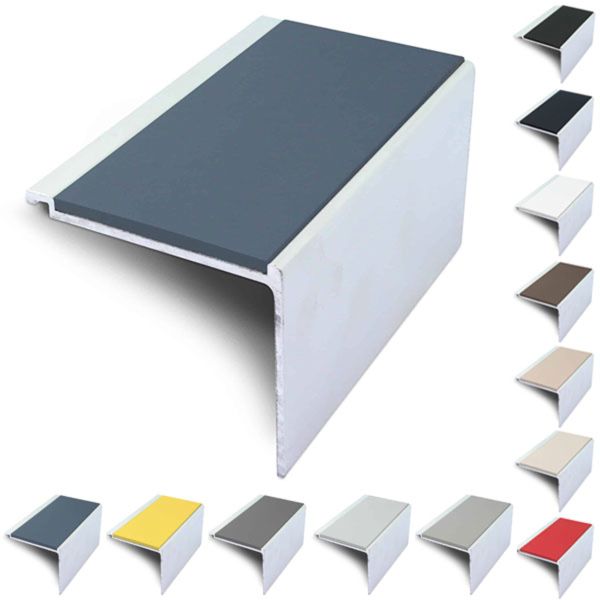

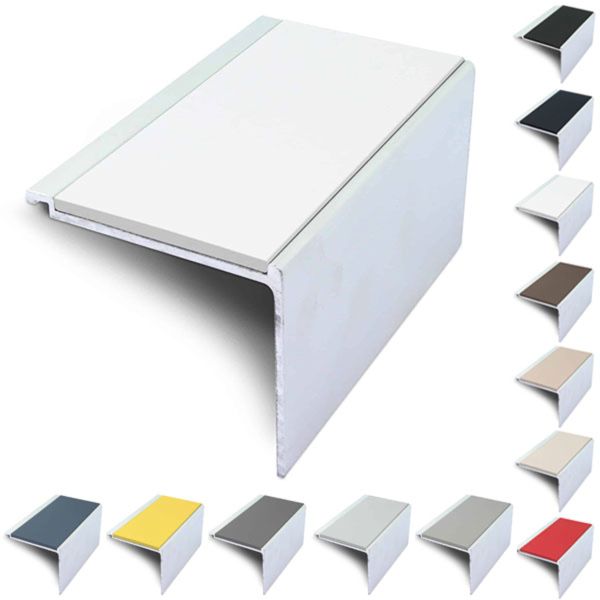

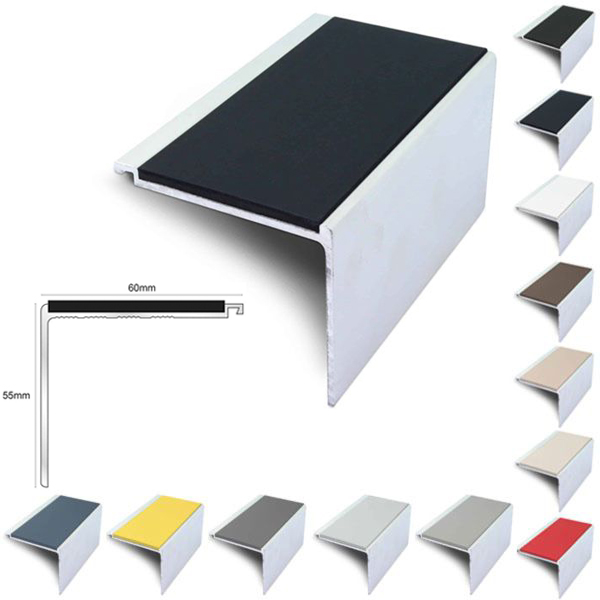

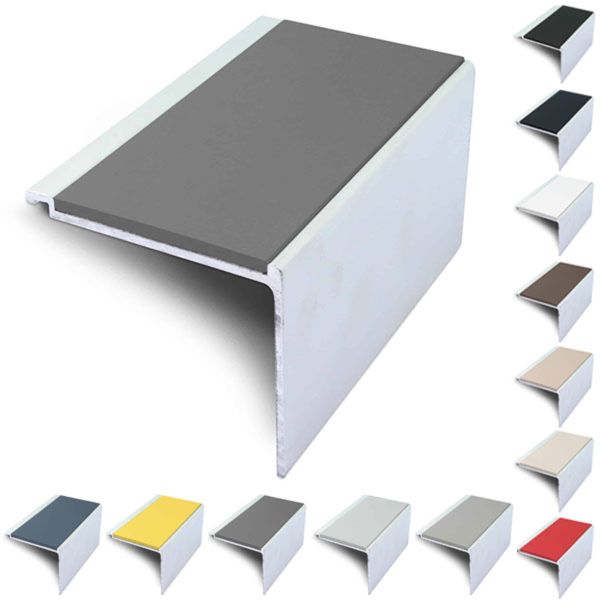

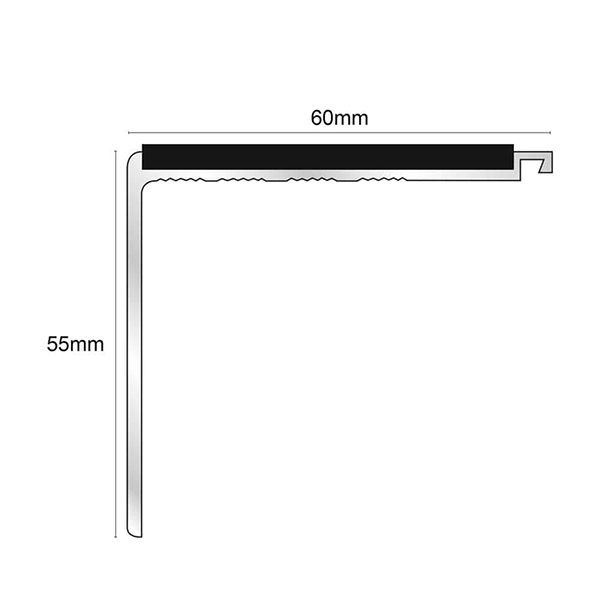

60mm x 55mm Commercial Non Slip Stair Nosing With PVC Insert for Edge Protection

60mm x 55mm Commercial Non Slip Stair Nosing With PVC Insert for Edge Protection
Specifications:

The NHD Profile is designed to be used in most commercial and industrial applications with a coloured PVC insert. It is available in a 5mm gauge allowing for fixing with carpet or similar floor covering. The profile is available in a range of designs with DDA and building regulations accounted for.

Designed to meet the guidelines in BS8300:2009+A1:2010.External grade  Insert.Tredsafe insert is manufactured from a special blend of P.V.C., silica quartz and polymeric plasticiser giving a homogeneous hard wearing anti-slip flooring for wet and dry conditions. The three-dimensional pyramid pattern which provides excellent slip resistance in both wet and dry conditions.

Installation

1. Ensure the steps are dry, clean, free of debris, level, and even.
2. If pre-drilled, use the drill holes to mark the drilling locations.
3. Drill and Plug the steps.
4. Apply a suitable adhesive to the underside of the nosing and apply the nosing to the step.
5. Screw down the step with the appropriate size screws.
6. Apply insert (if separate) or insert a pip to cover the screw head.

Note:  This profile comes pre-drilled and includes small pips to cover the holes.
