2.6m Ceramic Tile-In with Carbide Insert
Specifications:

• Genesis NLM is an exceptionally strong well designed, innovative.

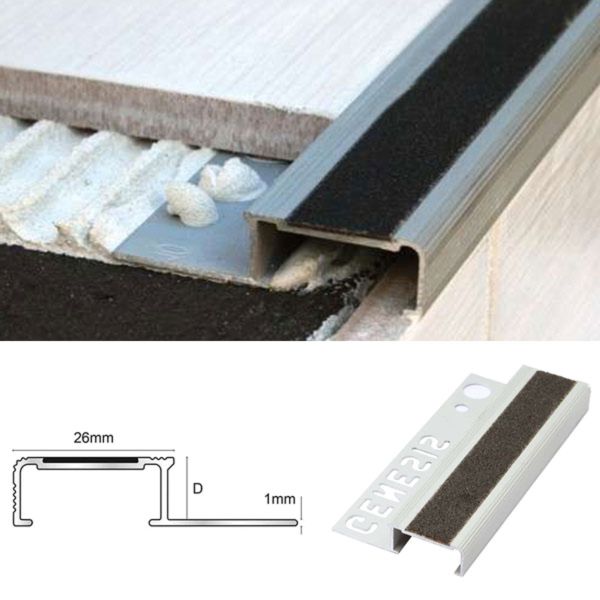

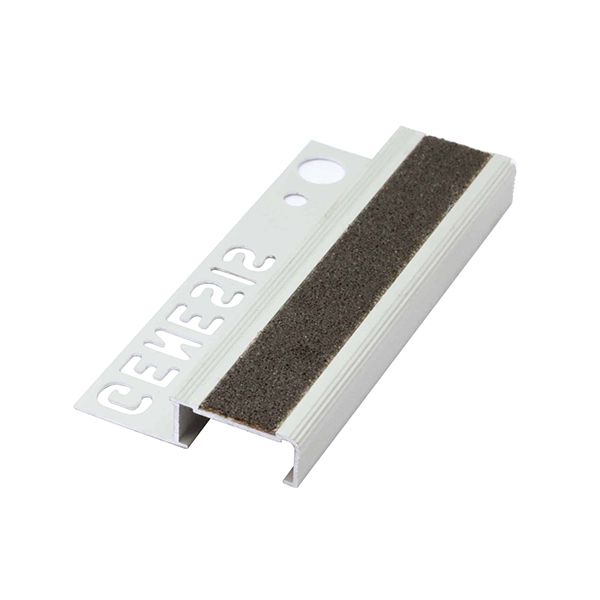

• Aluminium profile designed to provide a simple, safe secure edge for steps covered in ceramic tiles or similar.
• The flange sits underneath the tile and the top section or tread protects the riser tile and prevents water ingress into the joint gap.
• The top section also provides a perfect step edge with a grooved profile face for extra grip.
• Finally the top section has a generous 10-12mm deep front face to highlight the step edge from the bottom of the steps.

Colour:

• Matt Silver

Length:

• 3.0m

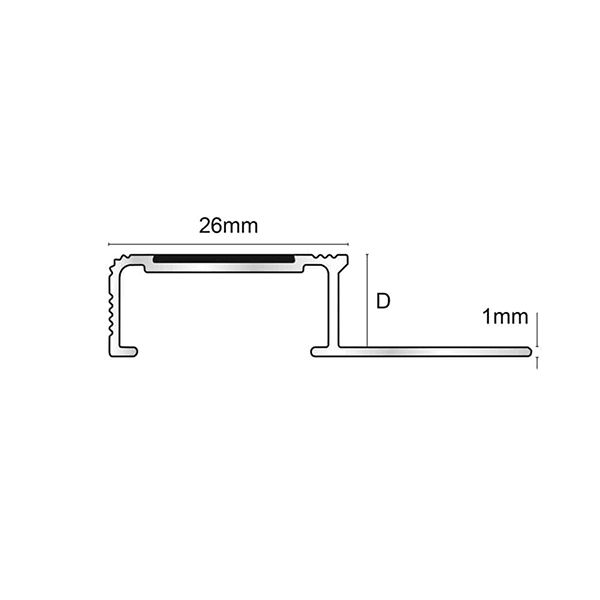

Size:

• 26x10mm
• 26x12mm

Installation

1. Ensure the steps are dry, clean, free of debris, level and even.
2. If pre-drilled use the drill holes to mark steps for drilling location.
3. Drill and Plug the steps.
4. Apply suitable adhesive to the underside of the nosing and apply nosing to the step.
5. Screw down the step with the appropriate size screws.
6. Apply insert (if separate) or insert pip to cover the screw head.
