Retro Fit 2.7m x 54mm x 30mm Non Slip Stair Nosing With Black Rubber Insert
Specifications:

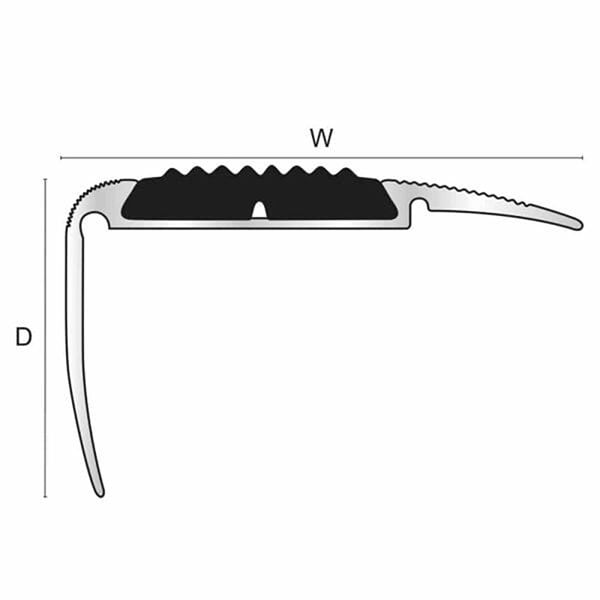

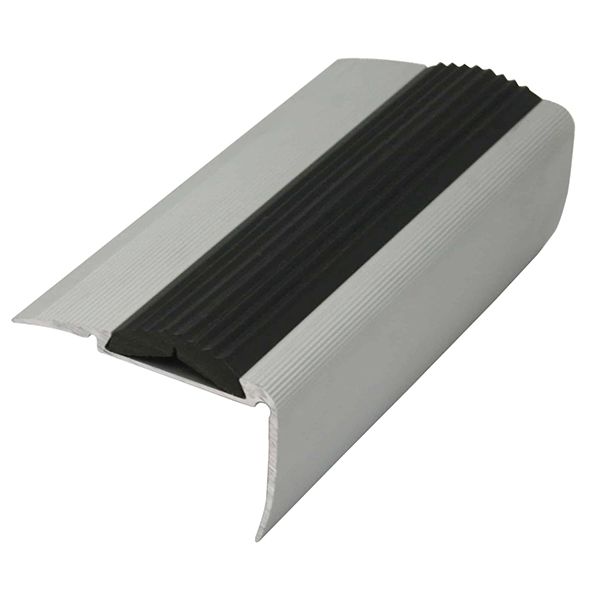

• This profile is a strong well designed, innovative Aluminium profile designed to provide a simple, safe secure edge for steps.

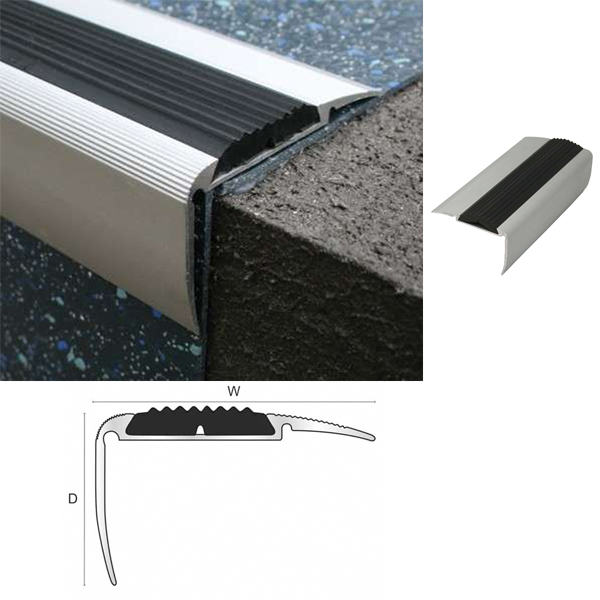

• The Anodised Silver profile sits on top of the floor covering providing a perfect step edge with a grooved 25mm wide insert offering additional grip
• The ramp offers a degree of movement allowing it to fit over Vinyl / LVT.
• The channel is supplied pre-drilled and countersunk at 180mm centres with fixing plugs and DIN 7050 M3.5 x 25mm screws for Mechanical fixing, once installed the insert can be easily applied concealing the screw heads.

Installation

1. Ensure the steps are dry, clean, free of debris, level and even.
2. If pre-drilled use the drill holes to mark steps for the drilling location.
3. Drill and Plug the steps.
4. Apply suitable adhesive to the underside of the nosing and apply nosing to the step.
5. Screw down the step with the appropriate size screws.
6. Apply insert (if separate) or insert pip to cover the screw head.
